E-Goniometer400 (Windows-G) - FREE

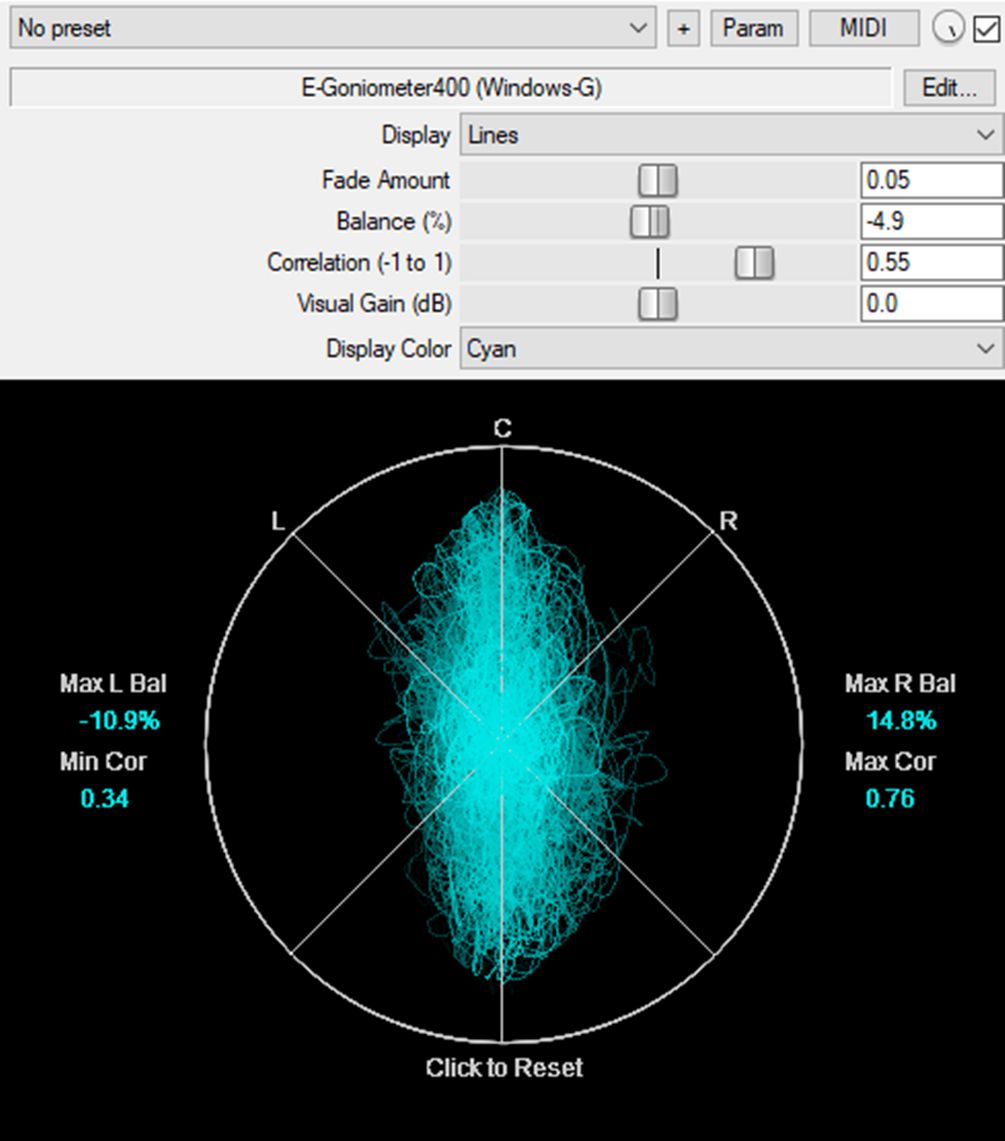

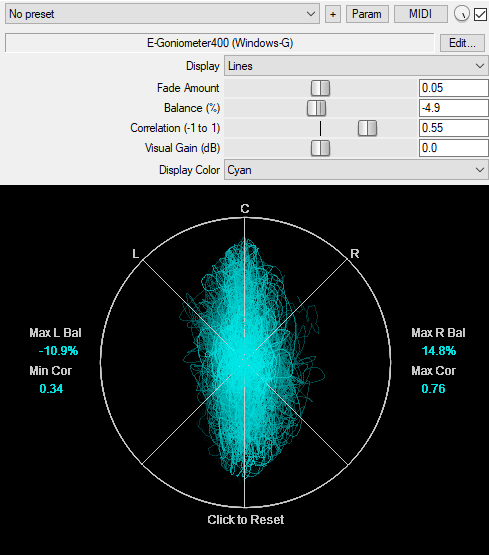

A JSFX Goniometer plugin for REAPER, which is a revamped version of the "JS Goniometer [LOSER]" by Michael Gruhn. It features:

* Display Type menu: switch between Dots, Lines, or Rays for different visualization styles.

* A circle and a center vertical line for better visual reference of your audio's stereo width and mono content.

* A Visual Gain slider to amplify the display when input audio is too quiet.

* Fade Amount control: adjust how quickly the display visuals fade out for clearer dynamic feedback.

* A Display Color menu, allowing you to choose your preferred color for the scope.

* Support for Retina/high-DPI screens.

* Accurate balance and correlation meters (ported from "JSFX Correlation Meter [JM]" by Jozef Mackowiak).

* Maximum Left and Right Balance Values: the plugin records and displays the maximum left and right balance positions your mix reached during playback.

* Minimum and Maximum Correlation Values: it also tracks the lowest and highest correlation values your mix hit.

* Persistent Readouts after Offline Render: When doing an offline render, the max/min values are preserved after the render is complete. You can manually click to reset them when needed.

For advanced users, the code includes an additional hidden control called Weight (adjusts the reaction time of the Balance and Correlation meters), which you can unhide for more customization. In case you want to hide any slider, simply click Edit at the top right of the plugin’s GUI, add a hyphen (-) before the slider description, then press Ctrl + S to save. Example: slider2:0.050<0,0.1,0.001>-Fade Amount

You can grab it for FREE.

Email Support: info.windowsg@gmail.com

==================================================

Using This JSFX Plugin in Other DAWs:

If you want to use this JSFX plugin in other DAWs, you can do so using the open-source YSFX plugin.

YSFX is available in VST3, AU, and CLAP formats for Windows, macOS, and Linux.

Download your preferred format of YSFX from:

https://github.com/JoepVanlier/ysfx/releases

YSFX comes in two versions:

* ysfx-s FX (for JSFX effects)

* ysfx-s instrument (for JSFX instruments)

1. Open ysfx-s FX in your DAW,

2. Then click “Load”, find your "E-Goniometer400_Windows-G" file, and click “Open.”

Your plugin will now run inside the YSFX host, working perfectly in any DAW that supports VST3, AU, or CLAP plugins.
