E-TranceGate700 (Windows-G)
A JSFX trance gate plugin for REAPER that offers:
* Two Pattern Modes:

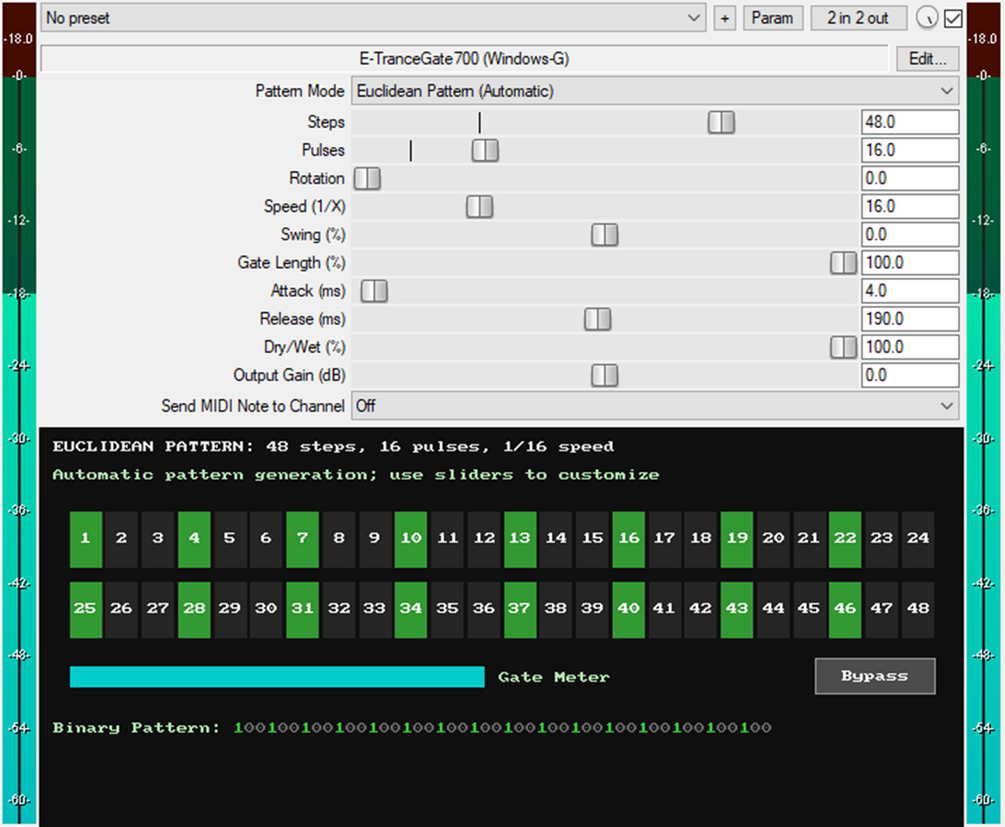

1. Euclidean Pattern (Automatic): Automatically generates rhythmic patterns using the mathematical Euclidean algorithm. Use sliders to customize the pattern.

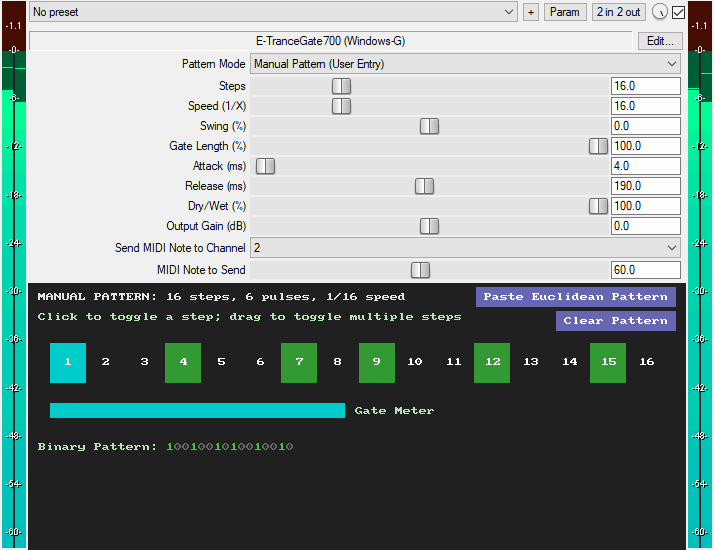

2. Manual Pattern (User Entry): Draw and edit your own custom step patterns on a click-and-drag interface. Click or drag to toggle steps on or off.
You can generate a pattern in Euclidean mode, then switch to the Manual mode and click "Paste Euclidean Pattern" to transfer it to the manual editor as a starting point for further tweaking. You can also use the “Clear Pattern” button to wipe the canvas and start your manual pattern from scratch.
* Steps: Set the number of steps in the pattern, from 1 to 64.
* Pulses: Set the number of "on" steps distributed within the total number of steps using Euclidean math.
* Rotation: Shift the generated Euclidean pattern forward or backward to change its groove.
* Speed (1/X): Set the rhythm speed relative to the project's tempo using note resolutions from 1 (whole notes) to 64 (64th notes).
* Swing (%): Add groove by delaying or advancing the off-beats from -50% to 50%.
* Gate Length (%): Set how long each gate stays open within each step, from 1% to 100% of the step's length.
* Attack (ms): Set fade-in time when gates open, from 1ms to 900ms.
* Release (ms): Set the time it takes for the gate to fade out after it closes, from 1ms to 900ms. It uses an exponential curve for a natural decay. Short times create a choppy sound, while long times create a sustained sound. Automating this slider with a square wave or other LFO shapes can create unique rhythmic movement.
* Dry/Wet: Blend between the original signal and the gated effect, from 0% (fully dry) to 100% (fully gated).
* Advanced Host Sync: Maintains perfect tempo sync with sample-accurate timing and features smart resync that automatically realigns when re-enabling from bypass, eliminating the sync drift issues common with other gate plugins.
* MIDI Output: Send the gate's triggers as MIDI notes to any MIDI channel from 1 to 16, with a dedicated slider to specify which MIDI note to send to that channel.
* Visual Feedback: The GUI features a step sequencer display with real-time playback indicator, a gate meter that visually shows the gate envelope, and a binary pattern readout of 1s and 0s.
* Output Gain (dB): Set the final output level of the plugin from -35dB to 35dB to compensate for volume changes.
* Zipper-Free Operation: Advanced interpolation prevents audio artifacts during automation and real-time adjustments of sliders.
* Minimal CPU usage: Complex rhythms used only 0.60% on a low-powered PC.
To support my work and the countless hours of development behind it, you can grab it for $8. All future updates are free, just make sure to use a valid email so I can send future updates to you. Listen to the audio demos below to hear what the plugin can do:
Email Support: info.windowsg@gmail.com
==================================================
Using This JSFX Plugin in Other DAWs:
If you want to use this JSFX plugin in other DAWs, you can do so using the open-source YSFX plugin.
YSFX is available in VST3, AU, and CLAP formats for Windows, macOS, and Linux.
Download your preferred format of YSFX from:
https://github.com/JoepVanlier/ysfx/releases
YSFX comes in two versions:
* ysfx-s FX (for JSFX effects)
* ysfx-s instrument (for JSFX instruments)
1. Open ysfx-s FX in your DAW,
2. Then click “Load”, find your "E-TranceGate700_Windows-G" file, and click “Open.”
Your plugin will now run inside the YSFX host, working perfectly in any DAW that supports VST3, AU, or CLAP plugins.
A JSFX trance gate audio effect plugin for REAPER that uniquely combines both automatic Euclidean pattern generation and manual step sequencing within a single plugin. The Euclidean Pattern mode generates mathematically balanced rhythms entirely by sliders, and the Manual Pattern mode allows click/drag step editing with options to paste the Euclidean pattern as a starting point or reset to a blank canvas. Patterns can be up to 64 steps, with controls for pulses (0–64), rotation (0–63), rhythmic speed (1/1 to 1/64), swing (-50% to +50%), gate length (1–100%), attack (1–900 ms), release (1–900 ms), dry/wet mix (0–100%), and output gain (-35 to +35 dB). Additionally, gate triggers can be sent as MIDI notes to any channel (1-16) with selectable note pitch. It produces a natural, musical gate effect through its exponential attack and release envelope curves. The release slider enables creative sound shaping, from tight, choppy gates to smooth sustained flows. The plugin features sample-accurate host sync that maintains perfect timing and automatically realigns when re-enabling from bypass. The GUI features a real-time step sequencer display, playhead indicator, gate envelope meter, and binary pattern readout. The plugin operates with zipper-free parameter changes and minimal CPU usage, even with complex patterns. It processes audio signals directly as an audio effect, making it suitable for sequenced gating of any audio source from synth pads to vocals.
